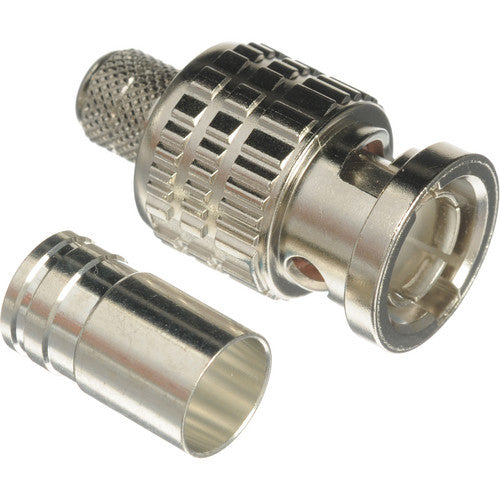

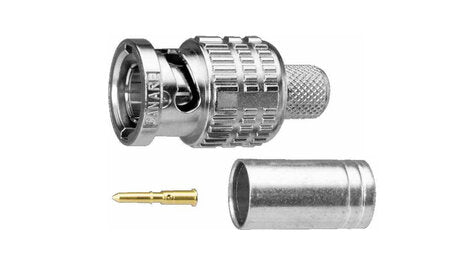

Belden HD BNC 3-Piece Crimp Connector for 1694A RG6 Coax Cable

SDI/ BNC Connector or Pin
Product Highlights
Three-Piece Straight BNC Connector
Compatible with Belden 1694A RG6 Cable
360° Compression Rings
75-Ohm Impedance


Specs
Belden 1694ABHD3 Specs
Connector Type BNC Coaxial, 3-Piece Crimp
Compatibility Belden 1694A RG6 Coax Cable
Body Type Straight Plug
Contact Material Brass
Termination Crimp
Impedance 75 Ohms
Voltage Rating 500 VRMS
Return Loss 3 to 4.5 GHz / ≥ 21 to -27 dB
Insulation Resistance > 5000 Megohms at 100 VDC
Durability 500 Cycles
Cable Retention Force > 90 lb / 41 kg
Finish Body/Bayonet: Brass, Nickel-Plated
Packaging Info
Package Weight 0.035 lb
Box Dimensions (LxWxH) 13.15 x 9.1 x 0.6"
