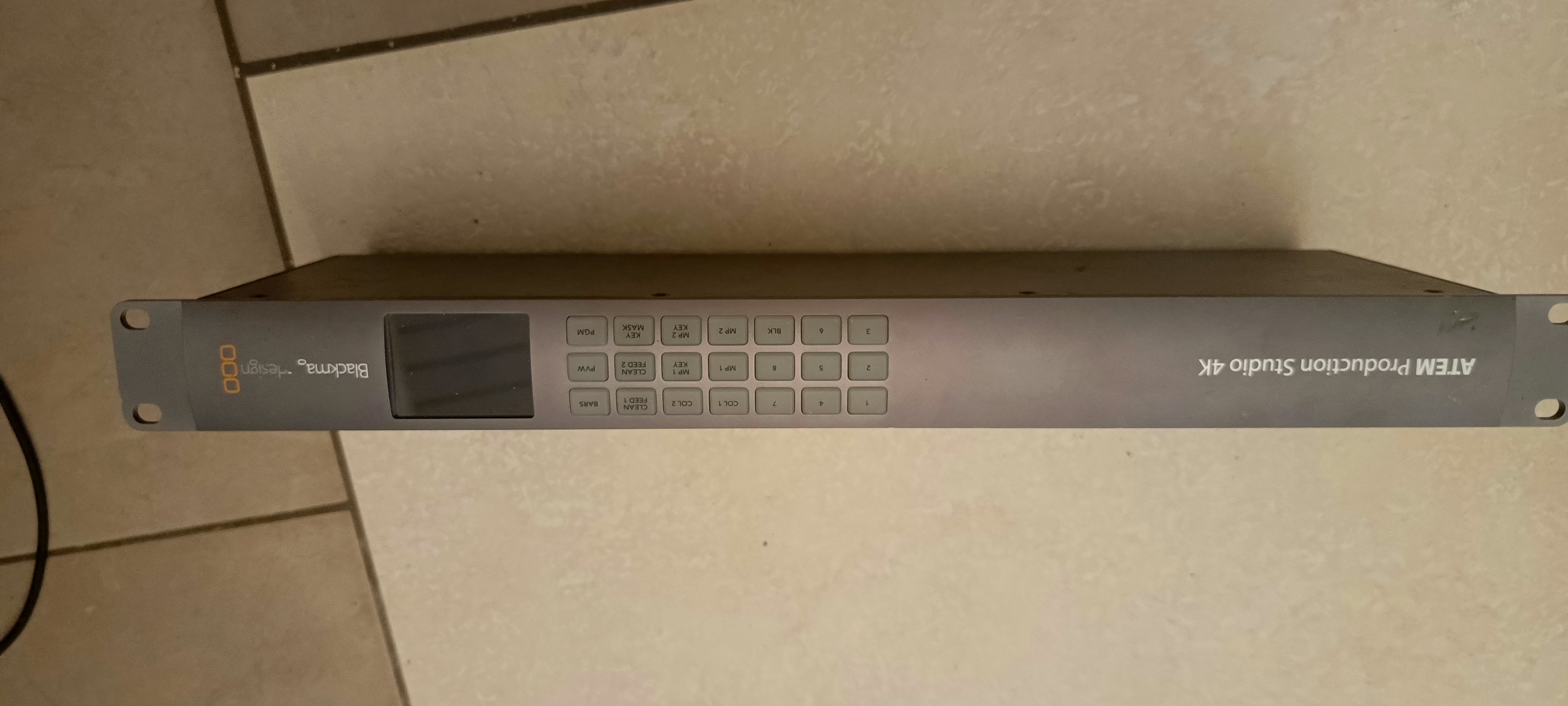

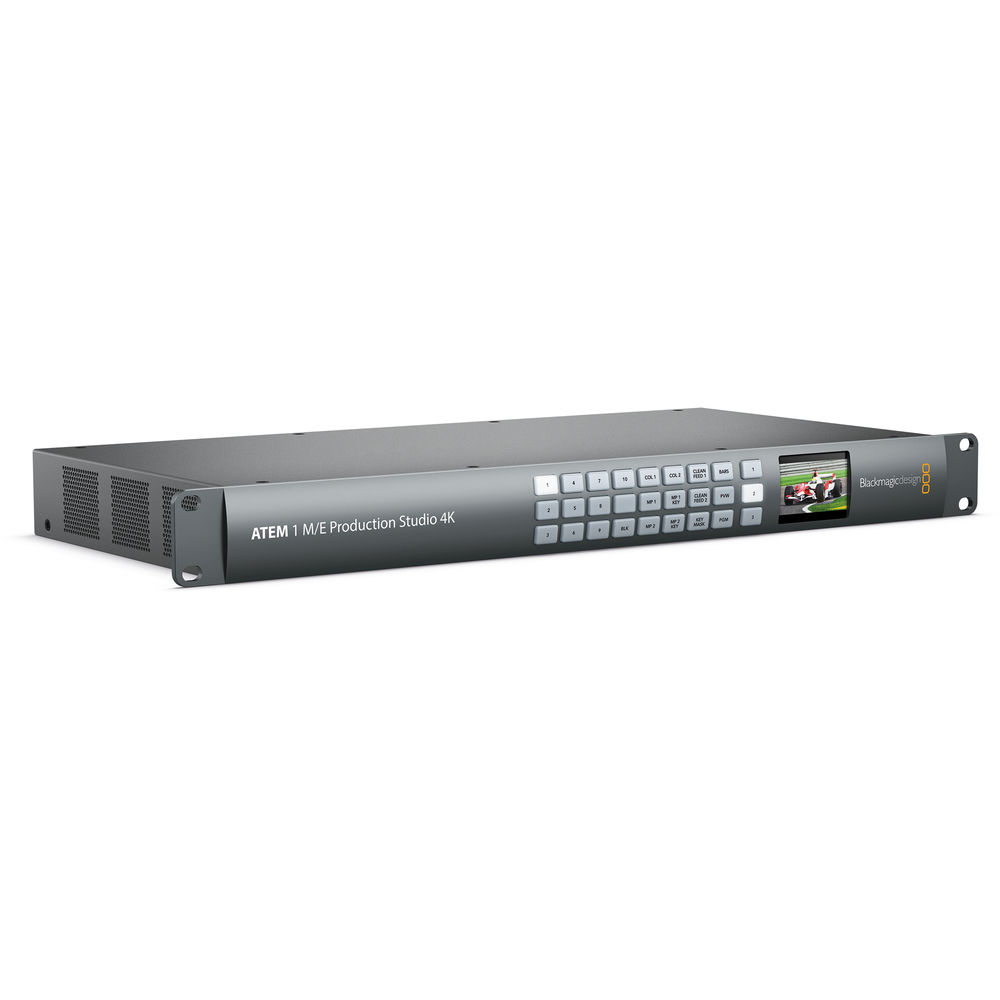

Blackmagic Design ATEM 1 M/E Production Studio 4K (Video Mixer)

Blackmagic Design ATEM 1 M/E Production Studio 4K (Video Mixer)
Pickup available, Usually ready in 24 hours
Product Highlights
Supports NTSC/PAL/HD/UHD 4K at 10-bit
Supports 4K Resolution over SDI or HDMI
4 x HDMI & 4 x 6G-SDI Inputs
Tri-Sync/Black Burst Ref Sync Input
10 x Built-In Frame Synchronizers
Multiview Monitoring in HD
Program Outputs in UHD/HD/SD
4 x Keyers Total: 3 x Luma, 1 x Chroma
12-Channel Audio Mixer
Hardware or Software Mac/Windows Control


Specs
Blackmagic Design ATEM 1 Specs
Effect Types 1 x DVE and Stinger
4 x Chroma Key
7 x Luma Key
Downstream Keys 2 x Alpha
Generators 7 x Pattern
2 x Color
Processing
Switching Type Pushbutton, Software
Latency 2 Lines
Color Processing 10-Bit
Input
Number of Video Input Sources 8
Video Input Connectors 4 x BNC (3G-SDI / 6G-SDI / HD-SDI / SD-SDI)
4 x HDMI
Input Video Format SDI (10-Bit)
UHD 4K: 23.98/24/25/29.97/30 fps
1080p: 23.98/24/25/29.97/50/59.94 fps
1080i: 50/59.94 fps
720p: 50/59.94 fps
PAL: 25 fps
NTSC: 29.97 fps
HDMI
UHD 4K: 23.98/24/25/29.97 fps
1080p: 50/59.94 fps
1080i: 50/59.94 fps
720p: 50/59.94 fps
PAL
NTSC
Audio Input Connectors 2 x 3-Pin XLR
1 x 2RCA
Embedded Audio Input SDI: 2-Channel (per Input)
Output
SDI Cable Connector or Pin and HDMI Cable
Video Output Channels 1
Video Output Connectors 2 x BNC (3G-SDI / 6G-SDI / HD-SDI / SD-SDI) (Program)
1 x BNC (HD-SDI) (Program)
1 x HDMI (Program)
1 x BNC (3G-SDI / 6G-SDI / HD-SDI / SD-SDI) (Preview)
3 x BNC (3G-SDI / 6G-SDI / HD-SDI / SD-SDI) (Pass-Through)
Output Video Format SDI (10-Bit)
UHD 4K: 23.98/24/25/29.97/30 fps
1080p: 29.97/50/59.94 fps
1080i: 50/59.94 fps
720p: 50/59.94 fps
PAL (768 x 576)
NTSC
HDMI (10-Bit)
UHD 4K: 23.98/24/25/29.97 fps
1080p: 50/59.94 fps
1080i: 50/59.94 fps
720p: 50/59.94 fps
PAL (768 x 576)
NTSC
Audio Output Connectors 2 x 3-Pin XLR
Multiview Output 10-Way Multiview viaSDI
10-Way Multiview viaHDMI
Connectivity
Other I/O 1 x BNC Blackburst, Tri-Level Sync
1 x RJ45 LAN
1 x USB Type-B
1 x DE-9/DB-9 RS-422
Video Standard Compliance SMPTE 259M/292M
HDCP Support None
Display
Display Size 2"
Hardware
OS Compatibility macOS 10.7 or Later
macOS 10.8 or Later
Windows 7
Windows 8
Power Connector 2 x IEC C14 Input
Power Consumption Device: 100 to 240 VAC (300 W)
General
Rack Form Factor 1 RU
Dimensions 19 x 9.25 x 1.7" / 48.26 x 23.5 x 4.32 cm
Weight 5.73 lb / 2.6 kg
Packaging Info
Package Weight 6.65 lb
Box Dimensions (LxWxH) 19.2 x 10.9 x 3.4"
